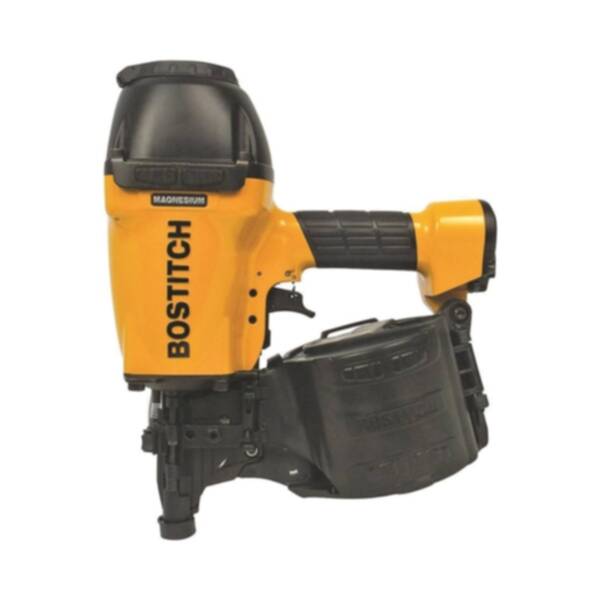

Chiodatrice pneumatica a nastro COIL CT100 (Chiodi 55-100 mm)

Chiodatrice pneumatica per chiodi a nastro da mm 55 a mm 100.

  • Impugnatura ergonomica in gomma
  • Corpo in alluminio
  • Sicura a contatto
  • Protezioni del corpo
  • Caricatore più stabile
  • Caricatore resistente agli urti
  • Impugnatura ausiliaria
  • Piastra e sicura compatti
  • Caricatore con meccanismo di regolazione a rotazione
  • Protezione dalla polvere e dalle schegge
  • Gancio di sostegno

SPECIFICHE

Modello N400C-1-E
Peso 5.3
Dimensioni Lunghezza
x Larghezza x Altezza (mm)		 338 × 483 × 153
Testa (mm) 7.2 (min) - 8.2 (max)
Lunghezza (mm) 55 (min) - 100 (max)
Diametro (mm) 2.8 (min) - 3.8 (max)
Capacità caricatore 300 (max)
Pressione operativa PSI 70 - 120
BAR 4.8 - 8.3
Consumo aria Ltr. per colpo @ 5,6 bar 3.61
Rumorosita LPA 1sd 92.3
LWA 1sd 99.4
LPA 1s, 1m 86.4
Vibrazione 3.2

ELEMENTI DI FISSAGGIO

Lungh. Codice Profilo Finitura Punta Dim.
rotolo		 Descrizione Qtà per scatola
60 F28060 LISCIO BRIGHT CHIODI COIL 2.80-60 LISCIO 7.5M 7500
60 F28060J9 LISCIO BRIGHT JUMBO CHIODI JUMBO 2.80-60 LISCIO 8.1M 8100
65 F28065 LISCIO BRIGHT CHIODI COIL 2.80-65 LISCIO 5M 5000
65 F310S65-TORX-GY LISCIO BRIGHT Torx CHIODI 3.10-65 TORX SCREW GALV 4.8M 4800
65 F325SP65 SPIRAL BRIGHT CHIODI COIL 3.25-65 SCREW 5M 5000
65 F33365S1275 SPIRAL BRIGHT CHIODI HARDEN 3.33-65 LISCIO 4.5M 4500
70 F28070 LISCIO BRIGHT CHIODI COIL 2.80-70 LISCIO 5M 5000
70 F28070CPJ9 LISCIO BRIGHT CP JUMBO CHIODI COIL JUMBO 2.80-70 CP PLAIN 5.4M 5400
70 F300SP70 SPIRAL BRIGHT CHIODI COIL 3.00-70 SCREW 5M 5000
70 F31070 LISCIO BRIGHT CHIODI COIL 3.10-70 LISCIO 4.5M 4500
70 F31070CPJ7 LISCIO BRIGHT CP JUMBO CHIODI COIL JUMBO 3.10-70 PLAIN CP 4.5M 4500
75 F28075 LISCIO BRIGHT CHIODI COIL 2.80-75 LISCIO 5M 5000
75 F31075 LISCIO BRIGHT CHIODI COIL 3.10-75 LISCIO 4.5M 4500
75 F310S75 SCREW BRIGHT CHIODI COIL 3.10-75 SCREW 4.5M 4500
80 F28080 LISCIO BRIGHT CHIODI COIL 2.80-80 LISCIO 5M 5000
80 F28080CPJ9 LISCIO BRIGHT CP JUMBO CHIODI COIL JUMBO 2.80-80 CP PLAIN 5.4M 5400
80 F300SP80 SPIRAL BRIGHT CHIODI COIL 3.00-80 SCREW 5M 5000
80 F300SP80J7 SPIRAL BRIGHT JUMBO CHIODI COIL 3.00-80 SPIRAL 4.5M 4500
80 F31080 LISCIO BRIGHT CHIODI COIL 3.10-80 LISCIO 4.5M 4500
80 F310S80BCP LISCIO BRIGHT BLUNT CP CHIODI COIL 3.10-80 SCREW BCP 4.5M 4500
80 F310S80 SCREW BRIGHT CHIODI COIL 3.10-80 SCREW 4.5M 4500
83 F28083 LISCIO BRIGHT CHIODI COIL 2.80-83 LISCIO 5M 5000
85 F300SP85 SPIRAL BRIGHT CHIODI COIL 3.00-85 SCREW 3.5M 3500
85 F31085 LISCIO BRIGHT CHIODI COIL 3.10-85 LISCIO 3.15M 3150
85 F31085J7 LISCIO BRIGHT JUMBO CHIODI COIL JUMBO 3.10-85 LISCIO 4.5M 4500
90 F28090 LISCIO BRIGHT CHIODI COIL 2.80-90 LISCIO 5M 5000
90 F300SP90 SPIRAL BRIGHT CHIODI COIL 3.00-90 SCREW 3.5M 3500
90 F300SP90J4 SPIRAL BRIGHT JUMBO CHIODI COIL JUMBO 3.00-90 SCREW 2.7M 2700
90 F31090 LISCIO BRIGHT CHIODI COIL 3.10-90 LISCIO 3.15M 3150
90 F31090CPJ7 LISCIO BRIGHT CP JUMBO CHIODI COIL JUMBO 3.10-90 PLAIN CP 4.5M 4500
90 F310S90BCP LISCIO BRIGHT BLUNT CP CHIODI COIL 3.10-90 SCREW BCP 3.15M 3150
90 F310S90 SCREW BRIGHT CHIODI COIL 3.10-90 SCREW 3.15M 3150
90 F325SP90 SPIRAL BRIGHT CHIODI COIL 3.25-90 SCREW 3.15M 3150
100 F300SP100 SPIRAL BRIGHT CHIODI COIL 3.00-100 SCREW 3.15M 3500
100 F310100 LISCIO BRIGHT CHIODI COIL 3.10-100 LISCIO 3.15M 3150
100 F325SP100 SPIRAL BRIGHT CHIODI COIL 3.25-100 SCREW 3.15M 3150
100 F333100 LISCIO BRIGHT CHIODI COIL 3.33-100 LISCIO 3.15M 3150
65 F280R65BG RING G13 CHIODI COIL 2.80-65 RING BOSGALV 5M 5000
70 F280R70BG RING G13 CHIODI COIL 2.80-70 RING BOSGALV 5M 5000
75 F280R75BG RING G13 CHIODI COIL 2.80-75 RING BOSGALV 5M 5000
80 F280SP80BG SPIRAL G13 CHIODI COIL 2.80-80 SPIRAL BOSGALV 5M 5000
80 F310R80BG RING G13 CHIODI COIL 3.10-80 RING BOSGALV 4.5M 4500
90 F310R90BG RING G13 CHIODI COIL 3.10-90 RING BOSGALV 4.5M 4500
100 F325SP100BG SPIRAL G13 CHIODI COIL 3.25-100 SPIRAL BOSGALV 3.15M 3150
55 F280R55G8 RING G8 CHIODI COIL 2.80-55 RING GAL8 7.5M 7500
55 F333R55G8 RING G8 CHIODI COIL 3.33-55 RING GAL8 4.5M 4500
55 F333R55G8J7 RING G8 JUMBO CHIODI COIL JUMBO 3.33-55 RING GAL8 4.5M 4500
60 F280R60G8 RING G8 CHIODI COIL 2.80-60 RING GAL8 7.5M 7500
65 F28065G8 LISCIO G8 CHIODI COIL 2.80-65 LISCIO GAL8 5M 5000
65 F280R65G8 RING G8 CHIODI COIL 2.80-65 RING GAL8 5M 5000
65 F333R65G8 RING G8 CHIODI COIL 3.33-65 RING GAL8 4.5M 4500
65 F333R65BCPG8 RING G8 BLUNT CP CHIODI COIL3.33-65 RING GAL8 4.5M 4500
65 F333R65BCPG8J7 RING G8 BLUNT CP JUMBO CHIODI COIL JUMBO 3.33-65 RING BCP GAL8 4.5M 4500
70 F28070G8 LISCIO G8 CHIODI COIL 2.80-70 LISCIO GAL8 5M 5000
70 F280R70G8 RING G8 CHIODI COIL 2.80-70 RING GAL8 5M 5000
70 F31070G8 LISCIO G8 CHIODI COIL 3.10-70 LISCIO GAL8 4.5M 4500
75 F28075G8 LISCIO G8 CHIODI COIL 2.80-75 LISCIO GAL8 5M 5000
75 F280R75G8 RING G8 CHIODI COIL 2.80-75 RING GAL8 5M 5000
75 F31075G8 LISCIO G8 CHIODI COIL 3.10-75 LISCIO GAL8 4.5M 4500
80 F28080G8 LISCIO G8 CHIODI COIL 2.80-80 LISCIO GAL8 5M 5000
80 F31080G8 LISCIO G8 CHIODI COIL 3.10-80 LISCIO GAL8 4.5M 4500
90 F31090G8 LISCIO G8 CHIODI COIL 3.10-90 LISCIO GAL8 3.15M 3150
90 F310S90G8 SCREW G8 CHIODI COIL 3.10-90 SCREW GAL8 3.15M 3150
100 F325SP100G8 SPIRAL G8 CHIODI COIL 3.25-100 SPIRAL GAL8 3.15M 3150
55 F280R55 RING LUCIDO CHIODI COIL 2.80-55 RING 7.5M 7500
55 F280R55J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-55 RING 8.1M 8100
55 F333R55 RING LUCIDO CHIODI COIL 3.33-55 RING 4.5M 4500
55 F333R55J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.33-55 RING 4.5M 4500
60 F280R60 RING LUCIDO CHIODI COIL 2.80-60 RING 7.5M 7500
65 F280R65 RING LUCIDO CHIODI COIL 2.80-65 RING 5M 5000
65 F280R65J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-65 RING 5.4M 5400
65 F280R65FP RING LUCIDO CHIODI COIL 2.80-65 RING FP 5M 5000
65 F310R65 RING LUCIDO CHIODI COIL 3.10-65 RING 4.5M 4500
65 F310R65BP RING LUCIDO BLUNT CHIODI COIL 3.10-65 RING BP 4.5M 4500
65 F333R65 RING LUCIDO CHIODI COIL 3.33-65 RING 4.5M 4500
65 F333R65BCP RING LUCIDO BLUNT CP CHIODI COIL 3.33-65 RING BCP 4.5M 4500
65 F333R65BCPJ7 RING LUCIDO BLUNT CP JUMBO CHIODI COIL JUMBO 3.33-65 RING BCP 4.5M 4500
70 F280R70 RING LUCIDO CHIODI COIL 2.80-70 RING 5M 5000
70 F280R70J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-70 RING 5.4M 5400
70 F310R70 RING LUCIDO CHIODI COIL 3.10-70 RING 4.5M 4500
70 F310R70J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.10-70 RING 4.5M 4500
70 F333R70BCP RING LUCIDO BLUNT CP CHIODI COIL 3.33-70 RING BCP 4.5M 4500
75 F280R75 RING LUCIDO CHIODI COIL 2.80-75 RING 5M 5000
75 F280R75J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-75 RING 5.4M 5400
75 F310R75 RING LUCIDO CHIODI COIL 3.10-75 RING 4.5M 4500
75 F310R75CHEP RING LUCIDO Chep CHEP CHIODI COIL 3.10-75 RING 4.5M 4500
80 F280R80 RING LUCIDO CHIODI COIL 2.80-80 RING 5M 5000
80 F280R80J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-80 RING 5.4M 5400
80 F310R80 RING LUCIDO CHIODI COIL 3.10-80 RING 4.5M 4500
80 F310R80J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.10-80 RING 4.5M 4500
80 F310R80CHEP RING LUCIDO Chep CHEP CHIODI COIL 3.10-85 RING 4.5M 4500
80 F310R80FP RING LUCIDO FP CHIODI COIL 3.10-80 RING 4.5M 4500
80 F333R80 RING LUCIDO CHIODI COIL 3.33-80 RING 4.5M 4500
85 F280R85J9 RING LUCIDO JUMBO CHIODI COIL JUMBO 2.80-85 RING 5.4M 5400
85 F310R85 RING LUCIDO CHIODI COIL 3.10-85 RING 3.15M 3150
90 F280R90 RING LUCIDO CHIODI COIL 2.80-90 RING 5M 5000
90 F310R90 RING LUCIDO CHIODI COIL 3.10-90 RING 3.15M 3150
90 F310R90J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.10-90 RING 4.5M 4500
90 F333R90 RING LUCIDO CHIODI COIL 3.33-90 RING 3.15M 3150
90 F333R90J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.33-90 RING 4.5M 4500
100 F310R100 RING LUCIDO CHIODI COIL 3.10-100 RING 3.15M 3150
100 F333R100 RING LUCIDO CHIODI COIL 3.33-100 RING 3.15M 3150
100 F333R100J7 RING LUCIDO JUMBO CHIODI COIL JUMBO 3.33-100 RING 4.5M 4500
65 F280R65BI RING SS CHIODI COIL 2.80-65 RING BOSINOX 5M 5000
70 F310R70BI RING SS CHIODI COIL 3.10-70 RING BOSINOX 4.5M 4500
75 F280R75BI RING SS CHIODI COIL 2.80-75 RING BOSINOX 5M 5000
75 F310R75BI RING SS CHIODI COIL 3.10-75 RING BOSINOX 4.5M 4500
80 F280R80BI RING SS CHIODI COIL 2.80-80 RING BOSINOX 5M 5000
80 F310R80BI RING SS CHIODI COIL 3.10-80 RING BOSINOX 4.5M 4500
90 F310R90BI RING SS CHIODI COIL 3.10-90 RING BOSINOX 3.15M 3150
100 F310R100BI RING SS CHIODI COIL 3.10-100 RING BOSINOX 3.15M 3150
